Technologies for a Blue Sky

Project Blue Sky

What we do as humans - doesn't just affect our own kind. For our development, we open productions and invent technologies, which all place an effect on our environment to various degrees. The practice of mass production in industrial areas together with the operation of transportation systems have contaminated the pure fresh air we used to have.

women with baby

From Ideation

But how exactly are our actions affecting the air quality in any given area? Monitoring air pollutants is important to understand how we can plan the mitigation efforts. For this purpose, air monitoring isn't a new concept, but real-time and wide-range systems are heavyweight and costly, while more lightweight solutions have limits in reporting data. There is yet a compact, easy-to-install technology that can be deployed quickly to collect and report real-time data without much hassle.

From Ideation

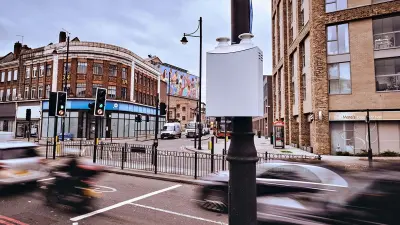

To Reality

To Reality

Motivated to address this situation, Bosch technicians have studied and successfully developed IMB as an "indicative air quality monitoring system” for monitoring air quality parameters in the ambient environment using intelligent sensors.

Air Quality Map

If measures to combat air pollution are to be effective, they need to be based on a sound understanding of what causes it, how it spreads, and how it changes during the course of the day.

Air Quality Map

The Air Quality Monitoring Box IMB

The IMB's compact and lightweight design makes it easy to install and operate in pedestrian areas. It contains a range of sensors including various gas and particle sensors and sensors for humidity, temperature, and pressure. The data is then uploaded to a cloud database for analysis to then help form an air quality map of the area. It brings us a complete vision of reality as well as predicts the trend of air change in the future.

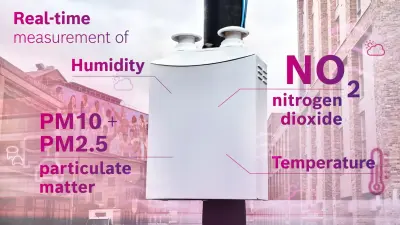

The lightweight monitoring box is equipped with sensors to record the levels of particulate matter and nitrogen dioxide, as well as ambient temperature and humidity, all in real-time.
The lightweight monitoring box is equipped with sensors to record the levels of particulate matter and nitrogen dioxide, as well as ambient temperature and humidity, all in real-time.
Each monitoring box analyzes around 300 liters of air every minute. Analysis of this generates up to 130 measurements per minute, which is then uploaded to the cloud.
Each monitoring box analyzes around 300 liters of air every minute. Analysis of this generates up to 130 measurements per minute, which is then uploaded to the cloud.

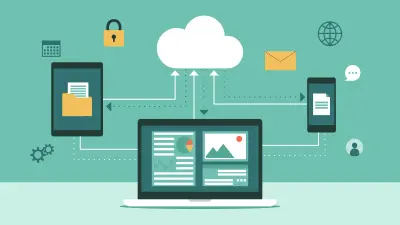

On the cloud, the raw data is processed and translated into a simulation by means of AI, accessible to the end-users on the go.
On the cloud, the raw data is processed and translated into a simulation by means of AI, accessible to the end-users on the go.
/

What sets it apart

Icon sensor

Sensors

Intelligent Bosch sensors for pollutant data measurements for PM2.5, PM10, NO2, O3, CO, and SO2, with a high level of accuracy and longer sensor lifetime.

Icon weather-cloud-sun-sensor

Parameters

Environmental parameters: Temperature, Relative Humidity (RH) and Pressure.

Icon box checkmark

Compact & durability

Compact design built to withstand rugged weather conditions. Intelligent correction functions ensure robustness against typically disturbing variables such as temperature or humidity levels.

Icon gears

Stability

Better performance with an active sampling of ambient air. Real-time granular data can be collected with high temporal and spatial resolution.

Icon connectivity

Connectivity

Remote monitoring enabled with wireless data connectivity. Ease of access for users on mobile devices.

Icon arrows

Scalability

Easy scalability of the monitoring network with a wide range of applications in commercial, residential, and industrial areas.

Bosch smart camera - a powerful companion

Bosch smart camera - a powerful companion

Since the boxes detect all airborne emissions regardless of where they originated, the air pollution cannot be traced back to specific sources. To be able to identify these sources nonetheless, further parameters are factored into the calculations performed in the cloud, such as data about traffic flow and congestion. The Bosch AUTODOME inteox 7000i – 2MP camera works as a perfect companion with the IMB to supply another source of data for the brain cloud.

INTEOX - the first fully open camera platform

INTEOX - the first fully open camera platform

INTEOX - the first fully open camera platform

Designed according to fully open principles, it combines built-in Intelligent Video Analytics from Bosch, a commonly used open Operating System (OS) provided by Security & Safety Things, with the ability to securely add software apps at a later date. This is backed by the Bosch quality for outstanding performance, lasting build quality, superior data security and privacy, and ease of installation and use.

INTEOX - the first fully open camera platform
Starlight technology - colors in the dark

Starlight technology - colors in the dark

Starlight technology - colors in the dark

Featuring Bosch's starlight technology with excellent low-light performance and High dynamic range (HDR) up to 120 dB to see detail in difficult light conditions, the camera offers the most robust Video Analytics on the market and delivers unmatched picture quality.

Starlight technology - colors in the dark
Camera Trainer - watch and learn

Camera Trainer - watch and learn

Camera Trainer - watch and learn

The camera is equipped with built-in machine learning capabilities. The more a video security camera can watch, know and learn, the more accurately and application-specifically it can perform.

Camera Trainer - watch and learn

Would you like to know how “blue” your sky is? Get in touch!
